Elco Lighting ELK0740

ELK0740 Product Description

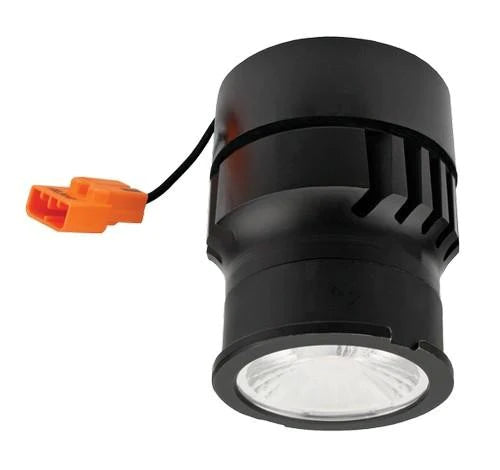

The Koto™ module is easy to install, maintain and upgrade. The Koto™ LED module is designed around a 2” Aperture with premium LED COB technology. Its integrated driver and lens holder guarantees tool-free installation and upgrades.

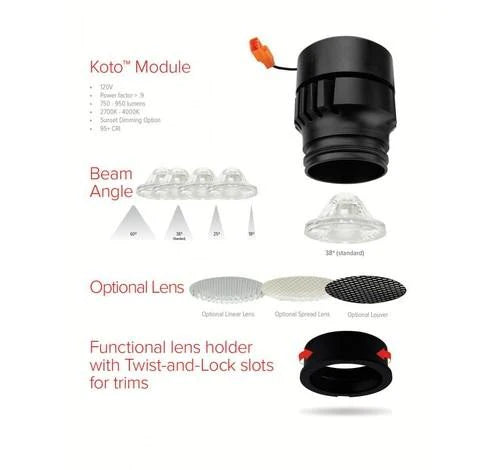

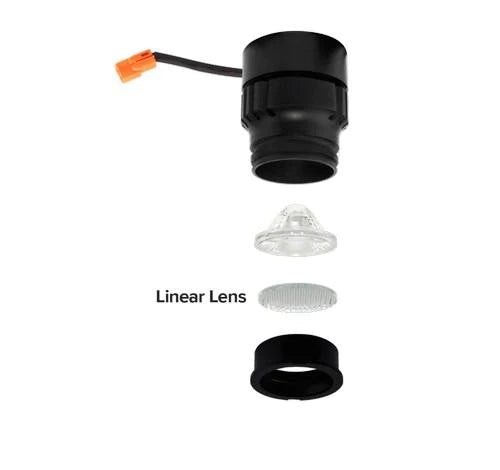

Its simple but precisely designed lens holder allows for quick beam adjustments as well as secondary optics, such as louvers and linear lenses. The same part allows for tool-free trim installation with a simple twist and lock connection. With a CRI of over 95+ and a variety of color temperatures, the Koto™ module is a popular choice for any project.

Using industry leading technology ELCO offers the Koto™ LED Module with standard 38º beam angle, with field changeable 15º, 18º, 28º and 60º lens options to give designers and architects choices when laying out a room, whether the downlight is spot lighting a breakfast table or lighting up a bedroom ELCO has the necessary beam angle options.

A compact and powerful LED lighting solution featuring a premium high-end light engine. Easy to install, maintain and upgrade, making it the perfect fit for any project.

FEATURES :

Integral driver for easy maintenance and upgrades
Includes: Standard 38º lens, with 28º and 60º lenses included. Optional: 15º and 18º lens available
Works in 3″ and 4″ ELCO housings with Koto™ twist-&-lock trims
Excellent color rendering 95+ CRI
Sunset option dims from 3000K to 1800K
ENERGY STAR Certified
Title 24 JA8 2016 Registered
Life span of 50,000 hours L70

SPECIFICATIONS :

Input Power : 10W
Input Voltage : 120V
Lumens : 750 - 950
Color Temp. : 2700K - 4000K, Sunset
CRI : 95+
Damp Location : UL listed
Wet Location : UL listed with Wet Trims
Dimmable : Triac/ELV
Beam Angle : 38º (Standard), 28º & 60º
Optional : 15º & 18º available

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.

Construction: Integrated driver and light engine with quick connect. Diecast aluminum body with heat fins allow for efficient cooling.

Compatible Housings: Koto™ Module is compatible with New Construction Housings, Remodel Housings, Alo™ Frames & Retrofit.

Installation: Twist-lock design for toolless trim installation, for use with Koto™ trims only. Can be use in 3" and 4" housings with quick connect base.

Electrical: Module connects to 120 power supply. High efficiency driver with a power factor >0.9. Start time of less than 0.75 seconds.

LED Technology: Extremely accurate Color Rendering Index of 95+. Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat sink. Instant On to Full Brightness technology. No LED pixilation.

Dimmability: Works with 120V Triac and ELV type dimmers. Dims down to 10%. For full list of dimmers, refer to the Dimmer Compatibility List. Industry leading dimming that dims smoothly with no hot spots or flickering.

Warranty: ELCO Products are built to last with a 5-year Limited Warranty

Labels And Listings :
UL Listed for Wet Location.
RoHS Compliant.
ENERGY STAR® Certified.
California Title 24 JA8-2016-E.
